Xploris All-in-One STEAM Lab

The Xploris by Labdisc is a powerful all-in-one STEAM tool, packed with the latest technology to enable full coverage of K-6 subject areas. Xploris integrates science data logging, math, coding, control, and art. From crafting a pixel art flower animation to coding it to open its petals when sunlight hits a light sensor, Xploris covers it all! Comes complete with access to training and over 40 K-12 standards-driven lessons.

From enabling outdoor field studies and inspiring artistic visual and audio creations to powering interdisciplinary coding challenges, the Xploris Labdisc gives students the freedom to explore wherever curiosity leads. Its all-in-one design eliminates the need for multiple tools or complex setups, so teachers can focus on guiding inquiry instead of managing equipment. With cross-curricular applications, Xploris helps students connect concepts through real-world data collection, mathematical analysis, artistic creativity, and coding challenges. With 5 sensor inputs and multiple output options, Xploris becomes a hub for integrated STEAM learning. The Xploris all-in-one STEAM Lab has been optimized for K-6 classrooms where you are looking for one device to tackle a little bit of every subject.

Built-in Sensors:
Ambient Temperature, Distance, Light, Sound (dB), External Temperature, Voltage
Compatible with the Xploris External Heart Rate Probe.

Xploris Outputs:
Voltage (2), Servos (2), Pixel Display (16x16 grid for still frames or animations), Speakers (play notes or songs)

Example Activities:
The Xploris Labdisc also comes complete with a MyStemKits Starter Plan allowing you to unlock up to five kits and their curriculum, including all compatible Xploris lessons. Choose from hundreds of ready-to-3D print models, virtual simulations, and standards-driven lesson plans for K-12 STEM education such as:
• What is the Weather Like Today? (K)
• Pixelated Petroglyphs (K-5)
• Mathematical Musical Motifs (1-2)
• Morse Music (1, 4)
• Red, Yellow, or Greenhouses? (2)
• Calculating Compound Area (3)
• We Need More Power! (4-6)
• Sketching Story Symbols (5)
• Color by Coordinate (5)

Package Includes:
• Labdisc Xploris (6)
• Labdisc Accessories (x6): Banana Cables with Alligator Clips, Temperature Probe, Lanyard, USB-C Charging Cable
• Xploris Charging Tray
• 2-Hour Online Training Course
• MyStemKits Starter Plan (1 year limited access x6 users)
• 2-Year Warranty
• US-based Customer Support
• Free Globilab Software for PC, iOS, or Android

Xploris Hardware Technical Specifications
Science Data Logging
Built-in Accessible Sensors: temperature, light, distance, sound, voltage
Maximum Sampling Speed: 100 samples/sec
Sampling Resolution: 12-bit
Measurement Memory Size: 40 recordings or 80,000 samples
Display Type: numeric data, bar graph
Remote Data Collection: yes
Automatic Sensor Testing & Calibration: yes

Control Outputs
Open Collector Switches: 2 outputs able to switch up to 1 A
Voltage Output: 2 × 5 V @ 100 mA
Servo Engine Drivers: 2 PWM servo outputs

Art & Display Features
Image Memory Size: 30 animations or 1,800 images
Display Type: 16 × 16 pixel full-color LED dot matrix
Music Composing: up to 126 notes

General Specs
Communication: USB 2.0, Bluetooth 4.2 (BLE)
Speaker: 0.7 W, 8 Ω
Keypad / Buttons: 7 keys/buttons
Internal Rechargeable Battery: LiPO 3.7 V
Battery Life: >11 hr at low LED brightness, ~7 hr at mid brightness, ~4 hr at high brightness
Charging Time: ~2 hr
Size: Ø 104 mm × H 30 mm
Weight: 140 g
Operating Temperature Range: –10 to 50 °C (compliant with CE, FCC)

Built-in Sensors
External Temperature: –25 to 125 °C (± 1 °C)
Ambient Temperature: –10 to 50 °C (± 5 °C)
Distance: 40 to 400 cm (± 2 mm)
Light: 0 to 60,000 lx (± 10 %)
Sound Level: 25 to 90 dB (± 4 dB)
Voltage: 0 to 5 V (± 2 %)

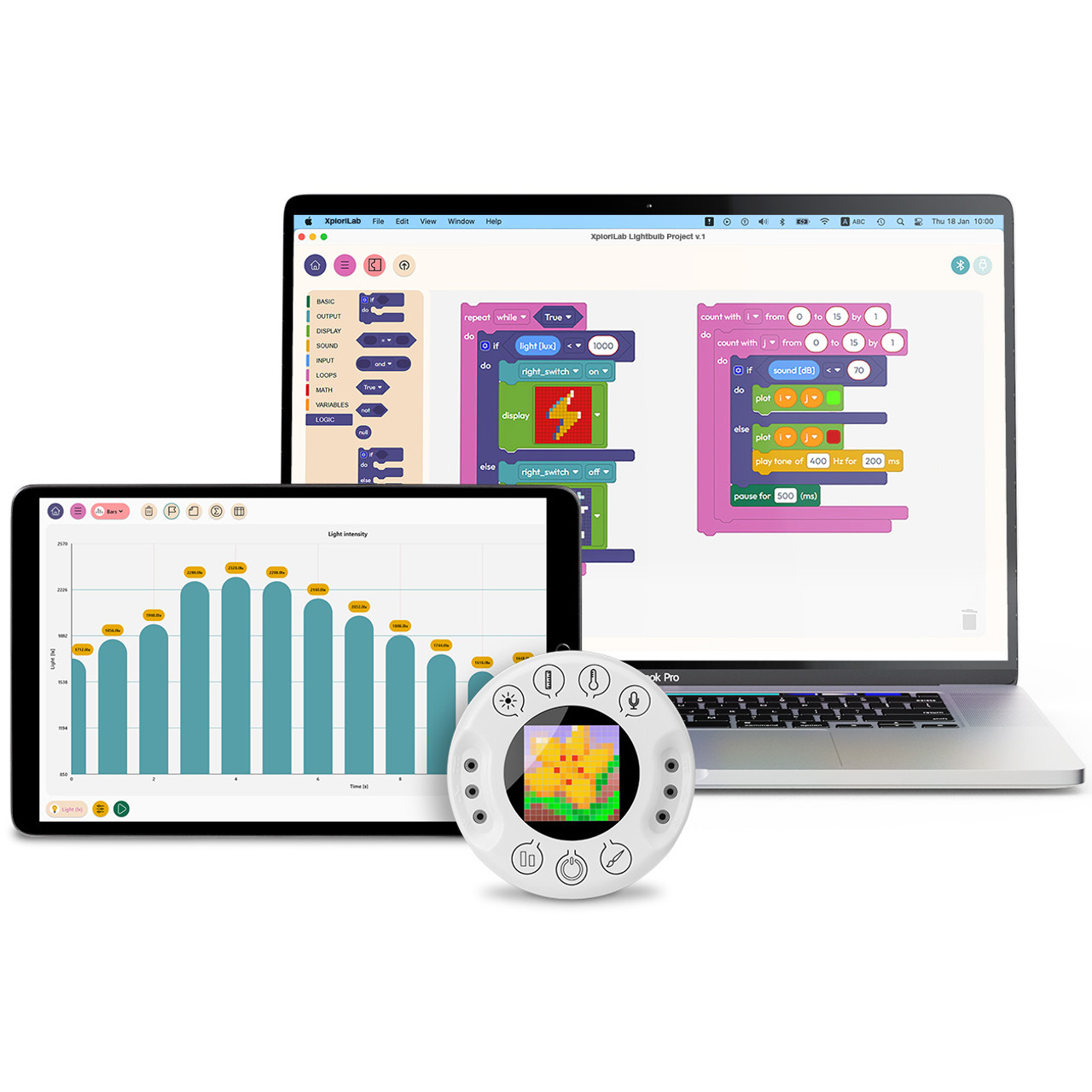

XploriLab Software Features
Coding Tools
Blockly/Scratch Editor: supports data types, variables, logic, loops, I/O, operations
Python Editor: including conversion from Blockly to Python
Code Flashing: deploy code to the device via USB-C or Bluetooth

Sensing & Data Logging
Real-Time Data Retrieval: up to 100 samples/sec, or download stored data
Display Types: real-time gauges, pictographs, line and bar graphs, tables
Logging Configuration: choose sensors, sampling rate, sample points
Graph Manipulation: add/move markers, zoom, crop, change color
Graph Annotation: add text, images, and GIFs (e.g., for richer visuals)
Analysis Functions: average, linear regression

Control
Inputs: light, distance, temperature, sound, voltage
Conditional Triggers: greater than, less than, between, rising above, falling below user-defined thresholds
Outputs: control sound tones, animation speed/frame, servo angle, open-collector contacts, 5 V output channels

Art & Animation Tools
Drawing Tools: pencil, color selection, duplicate, line, rectangle, fill, area select, move
Animation Tools: duplicate frames, adjust speed, add soundtrack, use up to 3 layers per frame
Pixel Art Library: cloud-based image & animation storage
Image/Animation Flashing: upload via USB-C or Bluetooth

Music Composing Features
Available Notes: 1.5 octaves (16 notes)
Compose: up to 126 notes with duration controls
Flash Composition: transmit to device via USB-C or Bluetooth for playback on device

Platform Compatibility
Supported OS: Windows, iOS, Android, Chrome OS
