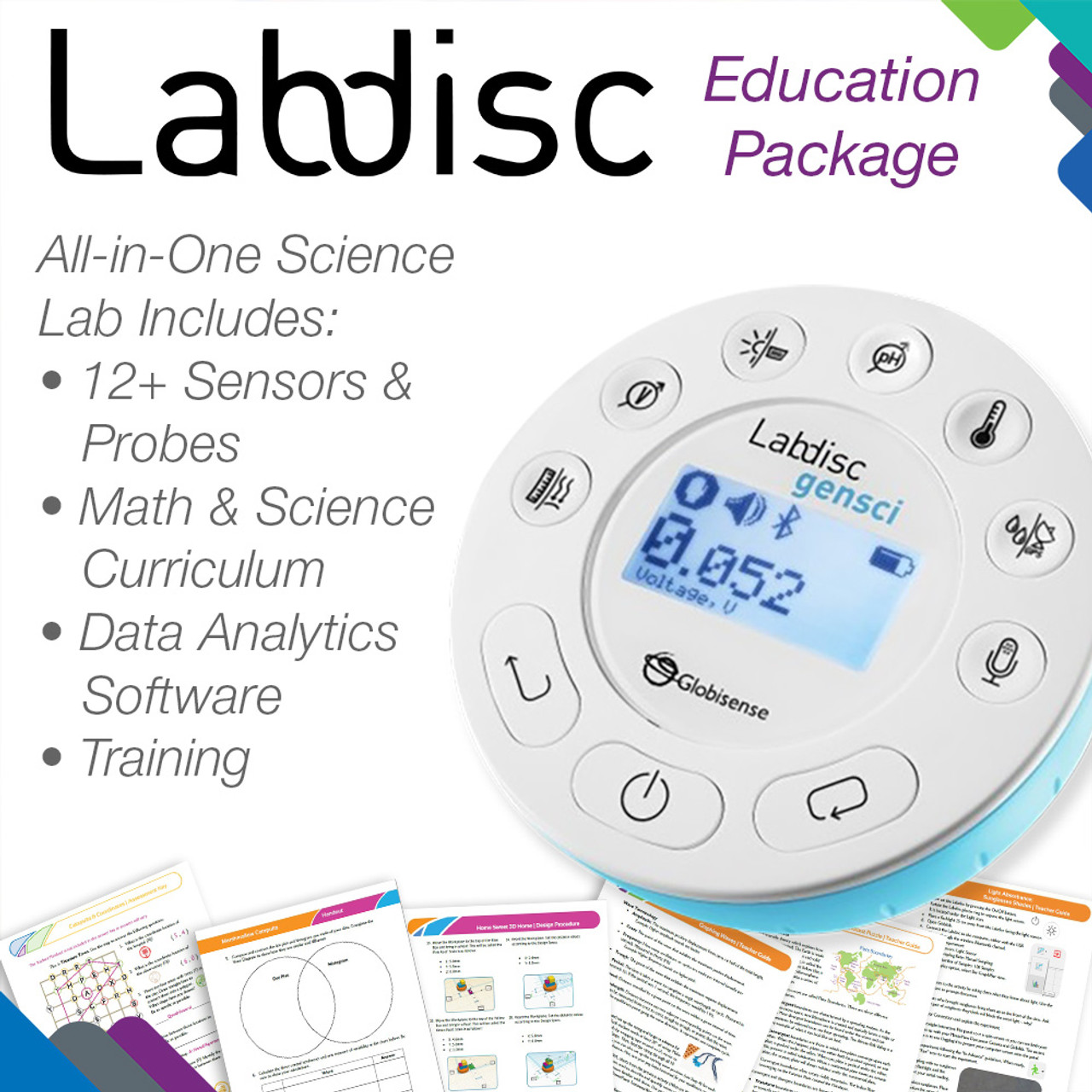

Labdisc Gensci All-in-One Science Lab

A portable science lab with 12 built-in sensors—ready to collect and analyze real-time data anywhere. Easy to use and auto-calibrated, it makes hands-on, inquiry-based learning simple for both math and science. Comes complete with access to training and over 60 K-12 standards-driven lessons.

From outdoor field studies to classroom experiments, the Gensci Labdisc gives students the freedom to explore science wherever curiosity leads. Its all-in-one design eliminates the need for multiple tools or complex setups, so teachers can focus on guiding inquiry instead of managing equipment. With cross-curricular applications, Labdisc helps students connect concepts through real-world data collection and analysis. The Gensci Labdisc has been optimized for general science classrooms and is ideal for K-8 or homeschool where you are looking for one device to tackle a little bit of every subject.

Built-in Sensors:
Air Pressure, Ambient Temperature, Current, Distance, External Temperature, GPS, Light, Microphone, pH, Relative Humidity, Sound Level, Voltage, Universal Input

Compatible with additional external sensors including a Force Accelerometer, Respiration, Magnetic Field, Voltage, Current, Heart Rate, and CO2 sensors.

Example Activities:
The Gensci Labdisc also comes complete with a MyStemKits Starter Plan allowing you to unlock up to five kits and their curriculum, including all compatible Labdisc lessons. Choose from hundreds of ready-to-3D print models, virtual simulations, and standards-driven lesson plans for K-12 STEM education such as:
• Shade Structures (K)
• Weather and Climate (3)
• Basil: Soil vs. Hydroponics (4-6)
• Citrus Circuits (5-6)
• Heat, Temperature, and Conduction (6-8)
• Planetary Temperatures (8)
• Boyle's Law: Pressure & Volume (9-12)
• Friction Forces (9-12)

Package Includes:
• Labdisc Gensci (1)
• Labdisc Accessories: Luer Lock Tube for Air Pressure Sensor, Banana Cables, Temperature Probe, pH Probe, and Charging Cable
• Self-Paced Online Training Course
• MyStemKits Starter Plan (1 year limited access)
• 2-Year Warranty
• US-based Customer Support
• Free Globilab Software for PC, iOS, or Android

Compatibility & Connectivity:
Data can be read directly from the Labdisc screen for most sensors.
Connect to Globilab Software for additional features. See Section below for details.
Data can also be cached on the device for analysis in Globilab afterwards.
USB 2.0
Bluetooth 2.0 + EDR or Bluetooth BLE

Built-in Sensors:
Air pressure: 0–300 kPa (±2.5 kPa)
Ambient temperature: –10 °C to 50 °C (±1 °C)
External temperature: –25 °C to 125 °C (±2 °C)
Current: –1 to 1 A (±2%)
Distance (motion): 0.4–10 m (±2%)
GPS: ±3 m accuracy
Light: 0–55,000 lux (±15%)
Microphone voltage: 0–5 V (±2%)
pH: 0–14 (±2%)
Relative humidity: 0–100% RH (±3.5% in 20–80%)
Sound level: 56–95 dBA (±4 dB)
Universal input: 0–5 V (±2%)
Voltage: –30 to 30 V (±2%)

Data Collection:
Up to 24,000 samples per second
12-bit resolution
Internal memory: 1,000,000 samples or 127 experiments

Power & Physical Specs:
Rechargeable LiPO battery (3.6 V)
Battery life: 150+ hours
Size: 132 mm (diameter) × 45 mm (height)
Weight: 300 g
Operating temperature: –10 °C to 50 °C
CE and FCC compliant

Software (GlobiLab):
Software for PC, Mac, Linux, iPad and Android. Limited compatibility with Chromebooks.
Live data or stored data download (up to 100 samples/sec)
Graphs, bar charts, tables, meters, and Google Maps integration
Customizable logging (sensor selection, sample rate, number of samples)
Interactive graph editing (markers, zoom, crop, color, legends)
Add text/images to graphs
Analysis tools: derivatives, regressions, FFT
Summary statistics (min, max, average, standard deviation)
Save, load, export to Excel, and print
Firmware updates via USB
