Soxhlet Extraction Apparatus

MSRP: $149.60
$124.67
Save $24.93
& Free Shipping over $69* Exclusions Apply
SKU: 253110
  • Apparatus that is used to distribute a small amount of solvent to dissolve a large amount of material
  • Includes an Allihn condenser with a 50/42 ground bottom joint
  • Includes an Extraction tube with a 50/42 ground top joint and a 24/29 ground bottom joint
Adding to cart… The item has been added

Details

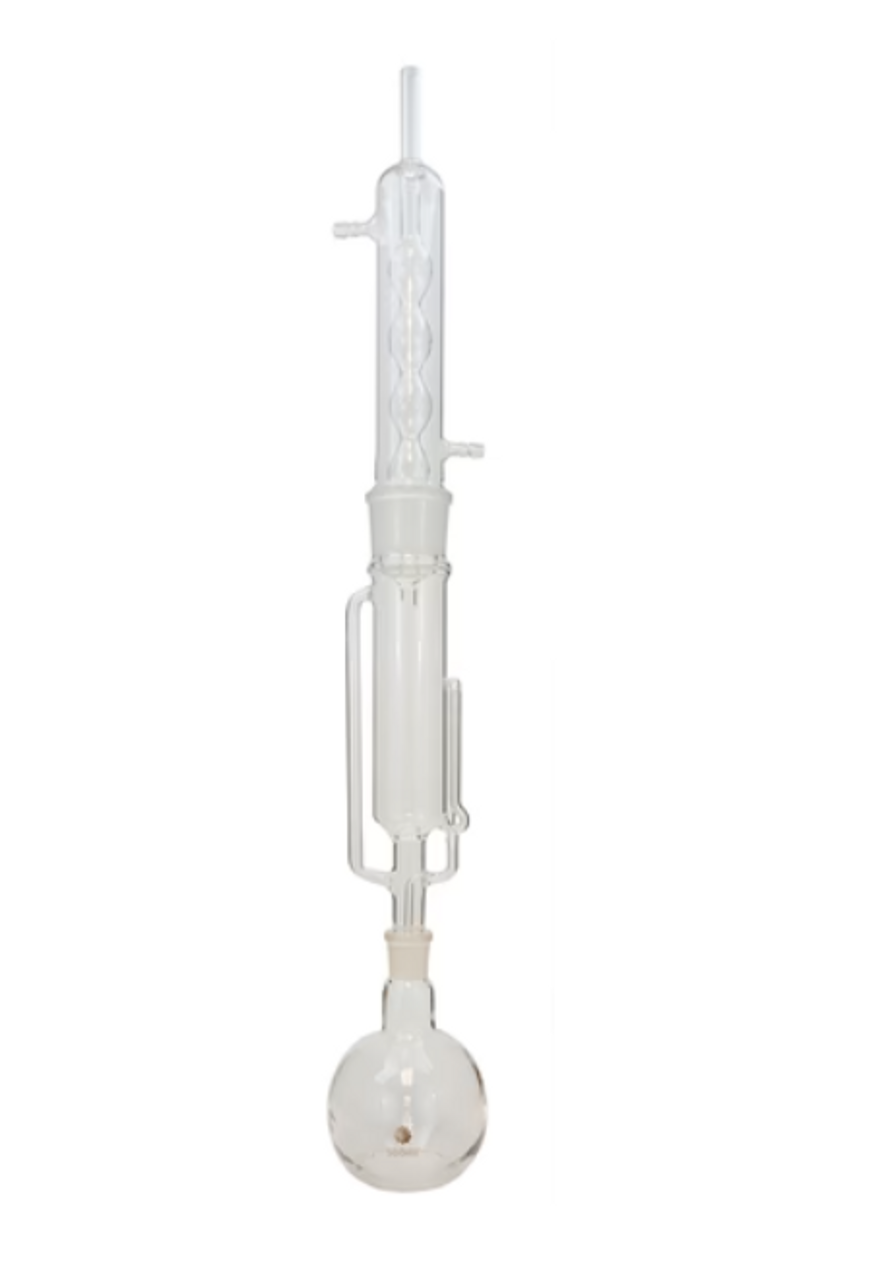

Soxhlet Extraction Apparatus

This Soxhlet extraction apparatus is a continuous-cycle setup for when a compound has limited solubility, or when an impurity is insoluble, in a solvent. It recycles a small amount of solvent to dissolve a larger amount of material, and the cycle restarts when the solution reaches the siphon tube. The set includes an Allihn condenser with a 50/42 ground bottom joint, an extraction tube with a 50/42 ground top joint and a 24/29 ground bottom joint, and a 500 ml flat-bottom flask with a 24/29 ground top joint.

What’s Included?

  • One Allihn condenser with a 50/42 ground bottom joint
  • One extraction tube with a 50/42 ground top joint and a 24/29 ground bottom joint
  • One 500 ml flat-bottom flask with a 24/29 ground top joint

In the Lab

Use this when you need a continuous extraction rather than a simple one-pass distillation. Make sure the 50/42 and 24/29 joints are seated correctly, and follow your usual rules for glassware, solvents, and heat.

Product Details

  • Condenser: Allihn condenser, 50/42 ground bottom joint
  • Extraction tube: 50/42 ground top joint and 24/29 ground bottom joint
  • Flask: 500 ml flat-bottom flask, 24/29 ground top joint

Frequently Asked Questions

What is included?

An Allihn condenser (50/42 bottom joint), an extraction tube (50/42 top and 24/29 bottom), and a 500 ml flat-bottom flask (24/29 top joint).

What is a Soxhlet apparatus used for?

Continuous-cycle extraction, especially when a compound has limited solubility or an impurity is insoluble in the solvent.

What size is the flask?

The flask is 500 ml.

What joint sizes are used?

The condenser and the top of the extraction tube use 50/42 joints. The bottom of the extraction tube and the flask use 24/29 joints.

Is this a simple distillation kit?

No. It is a Soxhlet, or continuous-cycle, extraction apparatus.

Specifications
