SOXHLET APPARATUS WITH HEATING MANTLE, SINGLE STATION

MSRP: $1,021.00
Was: $1,019.58
Now: $971.61
Save $49.39
& Free Shipping over $69* Exclusions Apply
SKU: 228030
  • Unique set includes components needed to create a Soxhlet extraction workstation
  • Maximum operating temperature is 400°C
  • Mantle can be used in ambient temperatures from 45°F to 100°F and relative humidity up to 80%
Adding to cart… The item has been added

Details

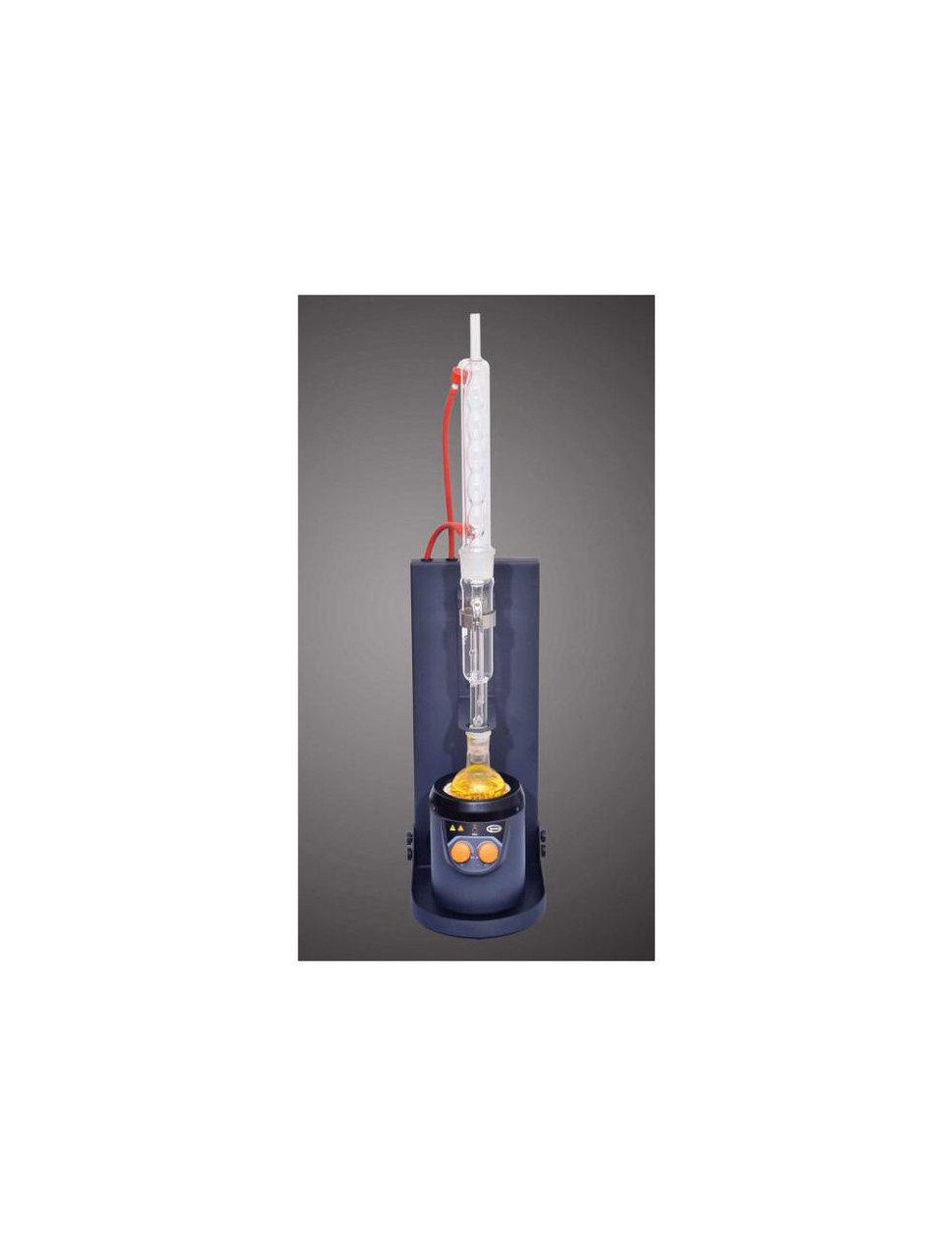

Soxhlet Extraction Apparatus with Heating Mantle, Single Station

This single-station Soxhlet extraction workstation includes matched glassware, a heating mantle with stirrer, a support stand, and tubing. The heating mantle reaches a maximum of 400 C, stirs at 50 to 750 RPM, and has separately controlled heat and stir knobs. Extraction thimbles are not included.

What’s Included?

  • 1 heating mantle with stirrer (polyurethane-coated aluminum exterior, knitted mantle with glass-fiber underlay; maximum 400 C; stir speed 50 to 750 RPM; two independent control knobs)
  • 1 borosilicate glass boiling flask, 250 mL
  • 1 borosilicate glass Soxhlet extractor, 100 mL
  • 1 borosilicate glass Allihn condenser, 300 mm, with glass connectors
  • 1 powder-coated metal support stand with aluminum clamp and stability bracket (20" high x 8" wide, with a 10.5" deep base platform and a 1" lip)
  • Two 48" lengths of rubber tubing with screw connectors

A complete extraction station

Assemble the 250 mL flask, 100 mL extractor, and 300 mm Allihn condenser on the stand, connect the tubing, and heat and stir from the mantle. Heat and stirring are controlled by separate knobs so you can adjust them independently.

Operating limits and what is not included

The mantle's maximum operating temperature is 400 C. It is intended for ambient temperatures of about 45 F to 100 F and relative humidity up to 80%. It is not waterproof and is rated IP code 10. The stand accepts a 30 x 100 mm or 33 x 100 mm extraction thimble, which is not included.

Product Details

  • Flask: 250 mL borosilicate glass boiling flask
  • Extractor: 100 mL borosilicate glass Soxhlet extractor
  • Condenser: 300 mm borosilicate glass Allihn condenser with glass connectors
  • Mantle: Maximum 400 C; stir 50 to 750 RPM; independent heat and stir controls
  • Stand: 20" H x 8" W, base 10.5" D with a 1" lip
  • Not included: 30 x 100 mm or 33 x 100 mm extraction thimble

Frequently Asked Questions

What glassware is included?

A 250 mL borosilicate boiling flask, a 100 mL borosilicate Soxhlet extractor, and a 300 mm borosilicate Allihn condenser with glass connectors.

What are the mantle's limits?

Maximum operating temperature 400 C, stir speed 50 to 750 RPM, with heat and stir controlled separately. It is not waterproof (IP code 10).

Are extraction thimbles included?

No. The stand accepts a 30 x 100 mm or 33 x 100 mm thimble, which you supply.

Is this a multi-station unit?

No. This listing is a single-station set.

What tubing is included?

Two 48" lengths of rubber tubing with screw connectors.
