Regulated Dual Output Digital Display Power Supply, AC: 12V, 5 Amps, DC: 0-12V, 5Amps

MSRP: $777.22
$647.68
Save $129.54
& Free Shipping over $69* Exclusions Apply
SKU: 225928
  • DC voltage 0-12V continuously variable and adjustable at 5A capacity.
  • 12V AC at 5A capacity is also provided.
  • Both the outputs can be used simultaneously to the full capacity.
Adding to cart… The item has been added

Details

Regulated Dual Output Digital Display Power Supply, 12 V AC / 0-12 V DC, 5 A

This dual-output power supply provides a regulated, continuously variable 0-12 V DC output at 5 A and a 12 V AC output at 5 A. Both outputs can be used at the same time at full capacity, and both are viewed on independent LED displays that show output voltage and current. Official safety features include an overload-protection indicator, a thermal cut-off, glass fuses at the input, and a spare fuse in the main input socket. Official copy says the unit has been tested for leakage, a burn test, and an insulation test and is CSA approved. It operates on 120 V AC or 240 V AC using a voltage selector switch on the back. Output sockets are standard 4 mm banana sockets. Ripple and noise are listed as 50 mV peak-to-peak. Banana plugs are not included.

What’s Included?

  • 1 dual-output power supply with 0-12 V DC at 5 A, 12 V AC at 5 A, and independent LED displays
  • 1 spare fuse in the main input socket

Independent AC and DC Outputs

Students can run a DC and an AC circuit at the same time and read both on the LED displays. Use 4 mm banana leads you already have; official copy says banana plugs are not included.

Product Details

  • DC output: 0-12 V, regulated and continuously variable, 5 A
  • AC output: 12 V, 5 A
  • Displays: Independent LED displays for output voltage and current

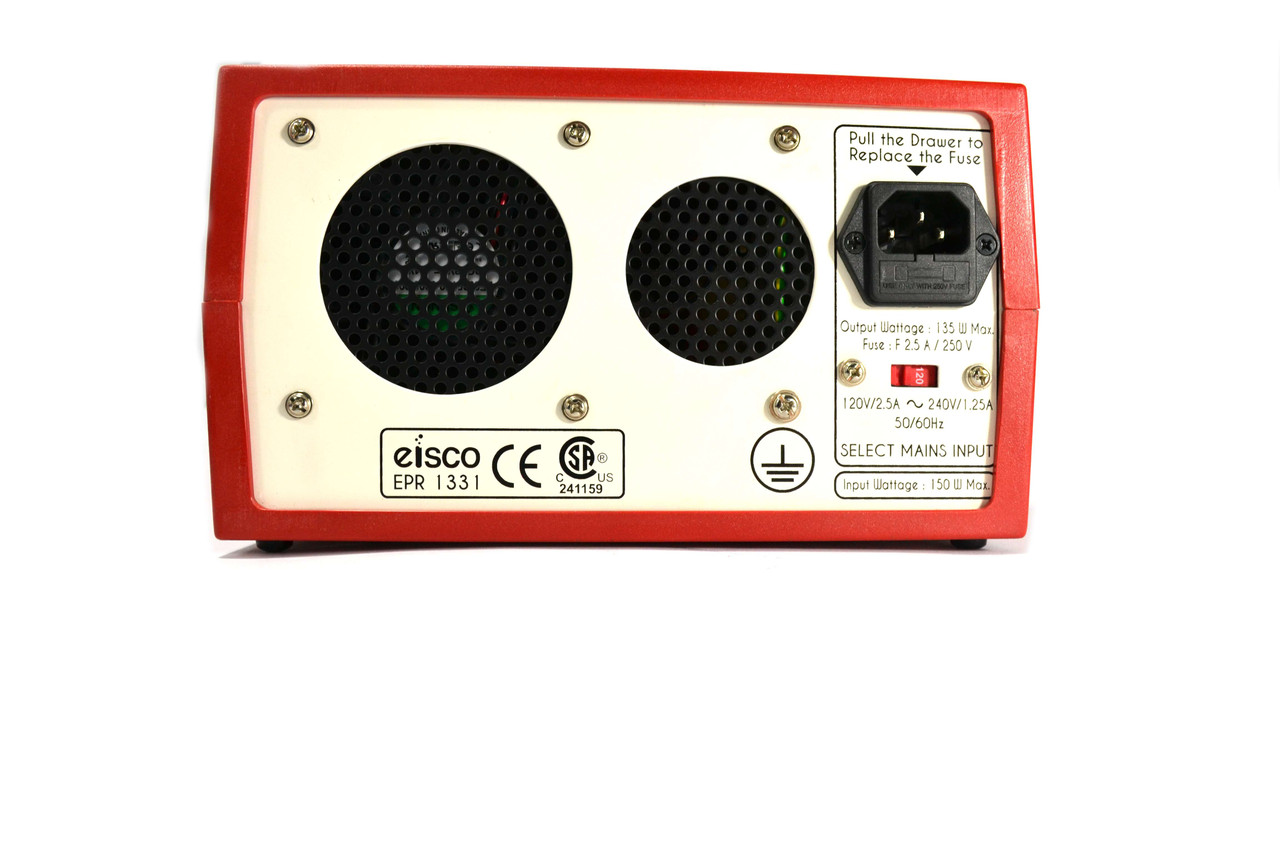

  • Input: 120 V AC or 240 V AC, selected on the back of the unit
  • Approval: Official copy states CSA approved

Frequently Asked Questions

What are the outputs?

Regulated, continuously variable 0-12 V DC at 5 A, and 12 V AC at 5 A. Both can be used at the same time at full capacity.

Are there displays?

Yes. Independent LED displays show output voltage and current.

What input voltages can I use?

Official copy says 120 V AC or 240 V AC, using a voltage selector switch on the back of the unit.

Are banana plugs included?

No. Output sockets are standard 4 mm banana sockets, and official copy states that banana plugs are not included.

What protection is included?

Official copy lists an overload-protection indicator, a thermal cut-off, glass fuses at the input, and a spare fuse in the main input socket. The unit is described as CSA approved.

Specifications
