Primary and Secondary Coils

MSRP: $89.50
$75.82
Save $13.68
& Free Shipping over $69* Exclusions Apply
SKU: 212780
  • Investigate electromagnetic induction.
  • Primary and secondary coils are wound on robust molded formers fitted with shielded banana jacks.
  • Activity guide included.
Adding to cart… The item has been added

Details

Primary and Secondary Coils

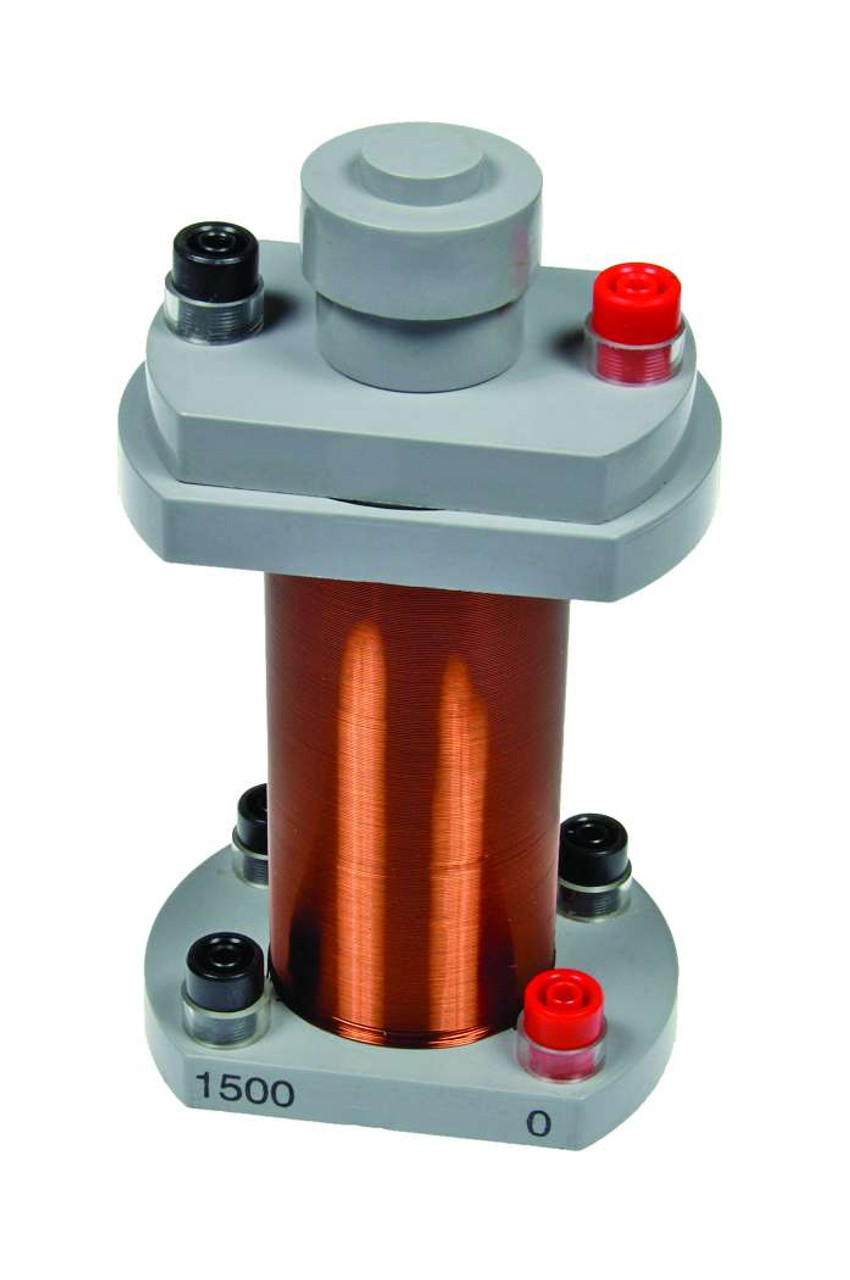

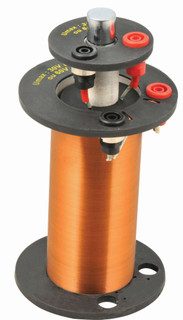

These coils are used to investigate electromagnetic induction. The primary and secondary coils are wound on molded formers with shielded banana jacks. A plated iron core has a molded handle so you can position it accurately in the coils. The primary coil has 175 turns of 18 AWG insulated copper wire. The secondary coil has three windings—500, 1,000, and 1,500 turns of 26 AWG wire. An activity guide is included.

What’s Included?

  • 1 primary coil, 175 turns of 18 AWG wire
  • 1 secondary coil with 500, 1,000, and 1,500-turn windings of 26 AWG wire
  • 1 plated iron core with a molded handle
  • Activity guide

Induction with more than one secondary winding

Students can compare induced voltage on the 500, 1,000, and 1,500-turn secondary windings and see how the number of turns matters. The molded handle on the iron core makes it easier to insert or withdraw the core while they watch the effect.

Connecting the coils

Shielded banana jacks are fitted on the molded formers. You will need a suitable power source and meters; those are not included.

Product Details

  • Primary coil: 175 turns of 18 AWG wire; about 34 mm diameter, 100 mm long; resistance 0.43 Ω; self-inductance about 3.1 mH
  • Secondary coil: 500, 1,000, and 1,500 turns of 26 AWG wire; about 52 mm diameter, 102 mm long; resistances 11.5 Ω, 23.3 Ω, and 35.7 Ω; self-inductances about 490 mH, 1.97 H, and 4.43 H
  • Iron core: About 19 mm in diameter and 165 mm long, including the handle

Frequently Asked Questions

How many turns are on the coils?

The primary coil has 175 turns. The secondary coil has three windings of 500, 1,000, and 1,500 turns.

Is an iron core included?

Yes. A plated iron core with a molded handle is included.

How do you connect meters or a power supply?

The coils are fitted with shielded banana jacks.

Is an activity guide included?

Yes.

Is a power supply included?

No. The coils, iron core, and activity guide are included; a power source and meters are not.
