Hoffman Electrolysis Apparatus with PTFE Stopcocks

MSRP: $209.26
$174.38
Save $34.88
& Free Shipping over $69* Exclusions Apply
SKU: 225768
  • Used for demonstrating the electrolytic decomposition of water or determining chemical composition
  • Made from heavy duty borosilicate 3.3 glass with glass key stopcock
  • Includes Hoffman Electrolysis Apparatus with (2) PTFE stopcocks, (2) carbon electrodes in rubber stoppers, (2) platinum electrodes in rubber stoppers, and instruction guide
Adding to cart… The item has been added

Details

Hoffman Electrolysis Apparatus with PTFE Stopcocks

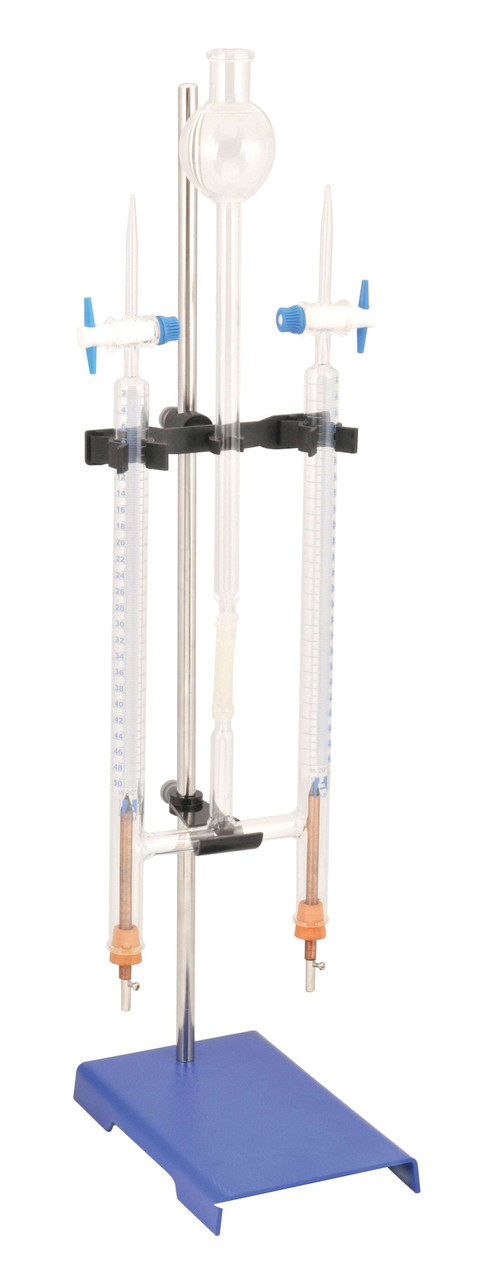

This Hoffman electrolysis apparatus is used to demonstrate the electrolytic decomposition of water or to determine chemical composition. The unit is made of heavy-duty borosilicate 3.3 glass and includes two PTFE stopcocks, two carbon electrodes in rubber stoppers, two platinum electrodes in rubber stoppers, and an instruction guide. The two outer tubes each have a 50 mL capacity and are graduated in 0.2 mL increments. They connect to a central tube with a 200 mL-capacity funnel-shaped bulb. Platinum electrodes are used for electrolysis of acidified water; carbon electrodes are supplied for ammonia solutions, hydrochloric acid, or other chloride-containing solutions. A support stand with clamps and a 12 V DC power supply are required but not included.

What’s Included?

  • Hoffman electrolysis apparatus with two PTFE stopcocks
  • Two carbon electrodes in rubber stoppers
  • Two platinum electrodes in rubber stoppers
  • Instruction guide

Classroom Use

This apparatus lets a class collect the gases from the electrolysis of water in the two graduated outer tubes and talk through composition by volume. Having both platinum and carbon electrodes in the box means you can switch the demonstration to ammonia or chloride solutions when the lesson calls for it.

What You Need to Supply

A support stand with clamps and a 12 V DC power supply are required but not included.

Product Details

  • Outer tubes: Two 50 mL tubes, graduated in 0.2 mL increments
  • Central bulb: 200 mL funnel-shaped bulb
  • Glass: Borosilicate 3.3

Frequently Asked Questions

What electrodes are included?

Two platinum electrodes in rubber stoppers and two carbon electrodes in rubber stoppers are included.

Is a power supply included?

No. A 12 V DC power supply and a support stand with clamps are required but not included.

What are the tube volumes?

The two outer tubes each have a 50 mL capacity and are graduated in 0.2 mL increments. The central tube has a 200 mL-capacity funnel-shaped bulb.

Which electrodes are used for which solutions?

Platinum electrodes are used for electrolysis of acidified water. Carbon electrodes are supplied for ammonia solutions, hydrochloric acid, or other chloride-containing solutions.

Are the stopcocks PTFE?

Yes. The official title and contents list two PTFE stopcocks.
