These D12-5 model rocket engines give a class or club a known 24 mm large engine with a total impulse of 20.00 N-sec and 5-second ejection delay. The official rating lists a maximum lift weight of 10.0 oz (283 g), including the engine, so you can match the motor to the rocket you actually plan to fly.
In a physics or aerospace unit, students can compare predicted altitude with a measured result once the rocket is flown within the official maximum lift weight of 10.0 oz. The 5-second delay gives a defined coast interval after burnout before the recovery system is charged, which is useful when you are discussing timing, mass, and recovery choice. Official delay values carry a tolerance of 1.5 seconds or 20%, whichever is greater. Official packs include starters and starter plugs with the engines.
Official performance data list a maximum thrust of 32.90 newtons (7.4 lb) and a thrust duration of 1.60 seconds. The loaded engine weighs 1.61 oz (45.7 g), with a propellant mass of 0.85 oz (24.2 g). Diameter is 24 mm. Use only in rockets and engine mounts sized for this motor, and follow the safety code printed with the engines.

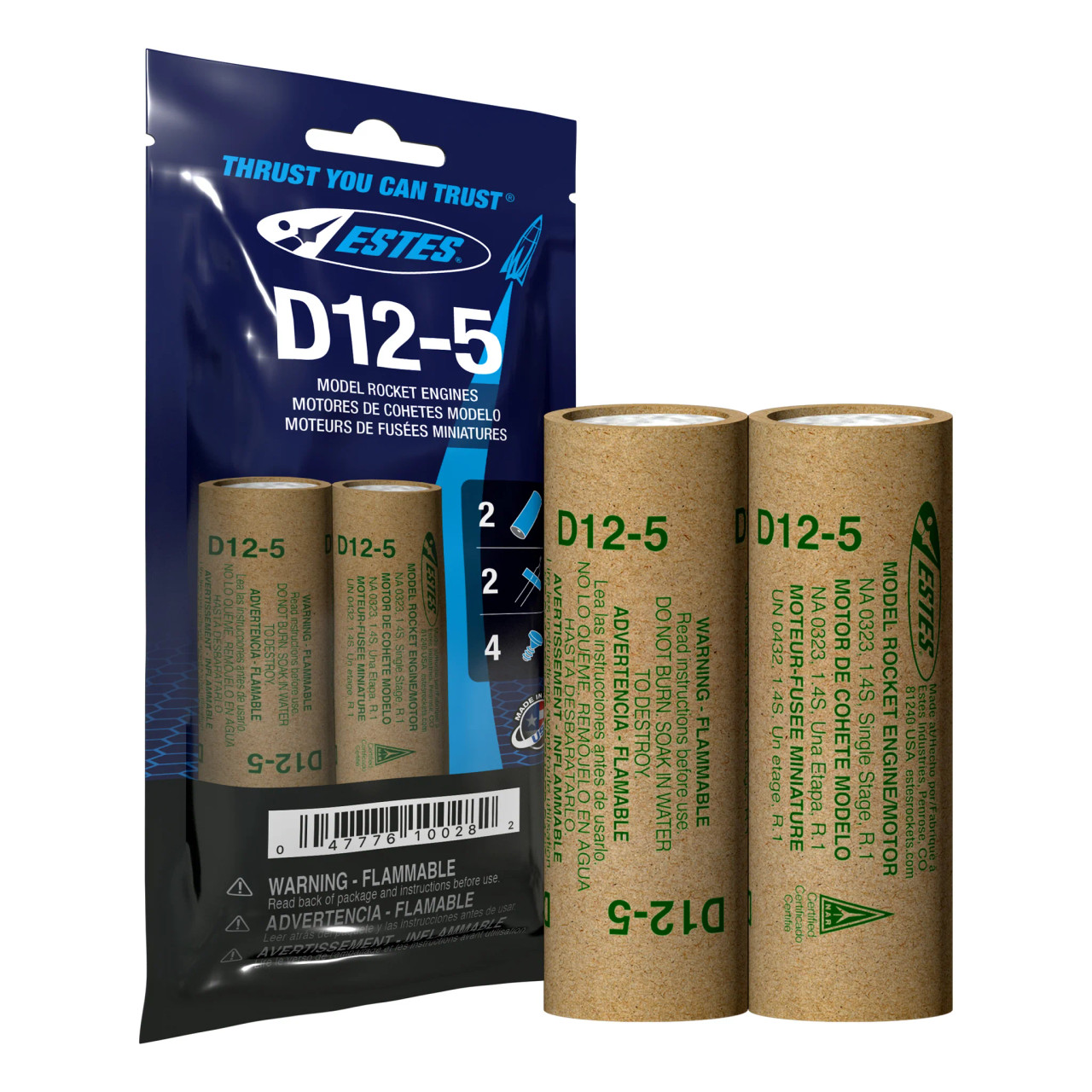

The official pack contains 2 D12-5 engines, plus starters and starter plugs.
Use it only in models built for a 24 mm mount and for a lift weight at or below 10.0 oz, including the engine. The official delay is 5 seconds, with a published tolerance of 1.5 seconds or 20%, whichever is greater.
Yes. Official engine packages include starters and starter plugs. A launch pad, controller, and recovery supplies are sold separately unless a flight pack or bulk pack listing includes wadding.
