Eisco Labs: Demonstration Relay

MSRP: $99.16
$82.62
Save $16.54
& Free Shipping over $69* Exclusions Apply
SKU: 260982
  • Relay
  • Demonstration Tool
  • Educational Equipment
Adding to cart… The item has been added

Details

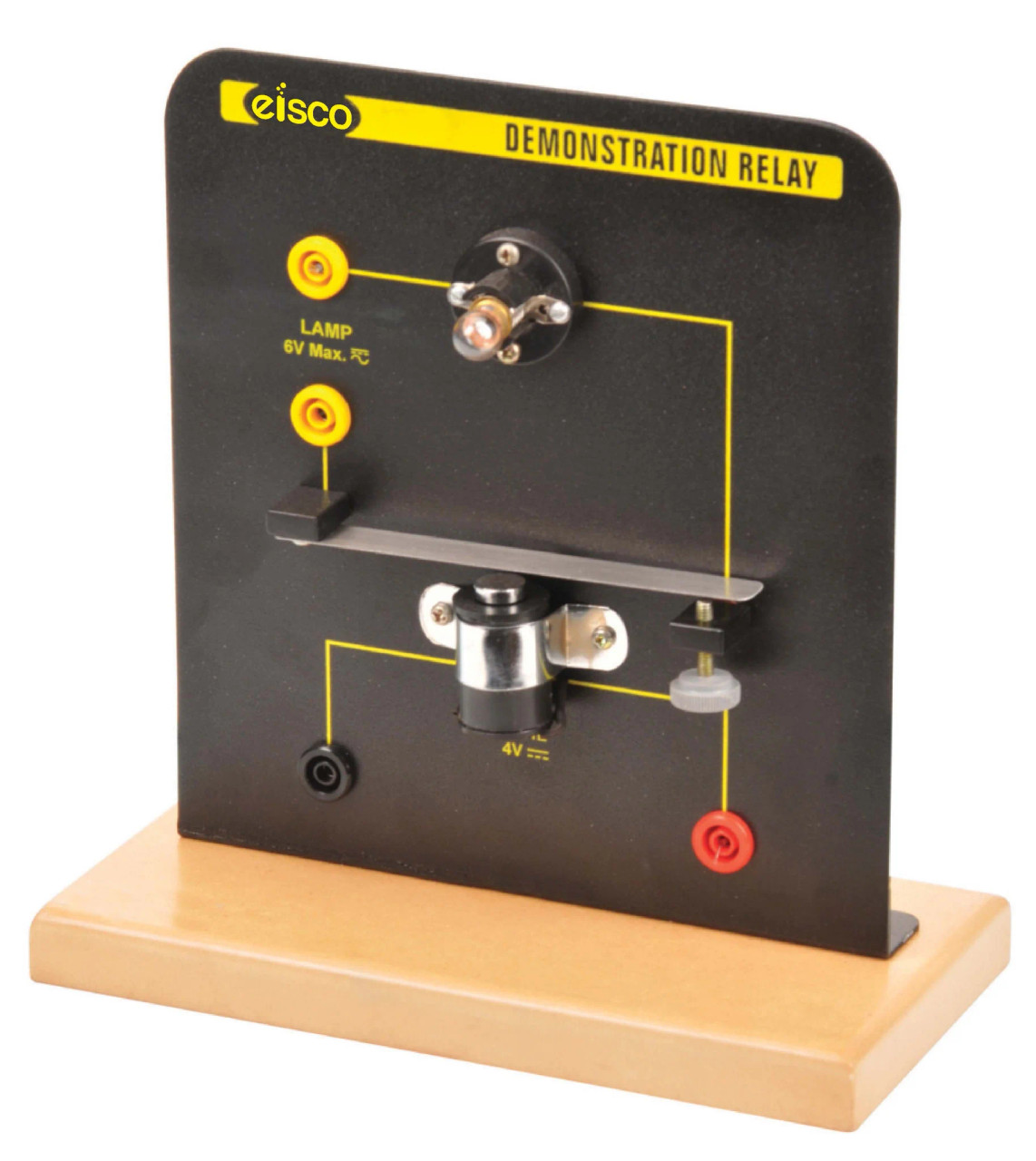

Relay Demonstration Apparatus

This relay demonstration apparatus is a labeled circuit board on a sturdy base, used to study a relay as an electrically operated switch that opens and closes circuits. Official copy states that the circuit powering the coil is completely separate from the circuit switched by the relay, so students can see both sides of the device in a hands-on way.

What’s Included?

  • One relay demonstration circuit board with clear labels, displayed on a sturdy base.
  • A coil-powering circuit that is completely separate from the circuit switched by the relay.

Seeing How a Relay Switches a Circuit

Students can power the coil circuit and watch the relay open or close the separate switched circuit. Official copy describes this as a visual, hands-on way to study the basic idea of an electrically operated switch.

Classroom Care

Follow your usual low-voltage classroom practice, keep the labeled board on its base, and disconnect power when the demonstration is finished.

Product Details

  • Form: Labeled circuit board on a sturdy base
  • Circuits: Coil circuit completely separate from the switched circuit

Frequently Asked Questions

What does the apparatus demonstrate?

The basic operation of a relay, an electrically operated switch that opens and closes circuits.

Are the circuits separate?

Yes. Official copy states that the circuit powering the coil is completely separate from the circuit switched by the relay.

Is it labeled?

Yes. Official copy describes a circuit board with clear labels on a sturdy base.

What is it mounted on?

A sturdy base.

Specifications
