Eisco Labs: Alpha Particle Scattering Apparatus

MSRP: $255.00
$212.50
Save $42.50
& Free Shipping over $69* Exclusions Apply
SKU: 257830
  • Particle Physics
  • Scientific Apparatus
  • Alpha Scattering
Adding to cart… The item has been added

Details

Alpha Particle Scattering Apparatus

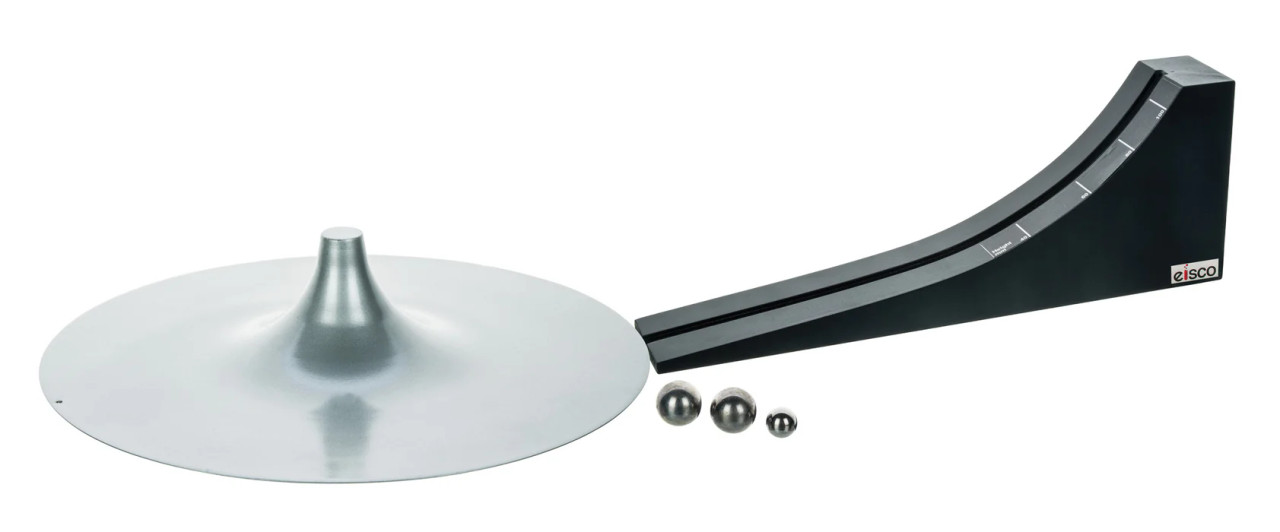

This apparatus is a gravitational analogue of Rutherford scattering and inverse-square-law repulsion. It includes a spun aluminum hill 280 mm in diameter and 60 mm high, a 12.5 mm steel ball, a 19 mm steel ball, and a wooden launching ramp. The hill's height above the base changes with the reciprocal of the radius. The ramp is 300 x 48 x 105 mm high, with a guide groove on its curved front face and index marks at 40, 60, 80, and 100 mm above the base for known launching heights.

What’s Included?

  • One spun aluminum hill, 280 mm diameter x 60 mm high
  • One 12.5 mm steel ball and one 19 mm steel ball
  • One wooden launching ramp, 300 x 48 x 105 mm high, with a guide groove and index marks at 40, 60, 80, and 100 mm

In Physics

Use the ramp's index marks to launch a steel ball from a known height and let students watch how the ball's path changes as it climbs the hill. The official page describes the hill shape as a gravitational analogue of inverse-square-law repulsion.

Product Details

  • Hill: Spun aluminum, 280 mm diameter x 60 mm high
  • Balls: 12.5 mm and 19 mm steel balls
  • Ramp: Wooden, 300 x 48 x 105 mm high, with a guide groove and height index marks

Frequently Asked Questions

What does this apparatus demonstrate?

Rutherford scattering, using a gravitational analogue of inverse-square-law repulsion.

What is included?

A spun aluminum hill, a 12.5 mm steel ball, a 19 mm steel ball, and a wooden launching ramp.

How large is the hill?

280 mm in diameter and 60 mm high.

What marks are on the ramp?

Index marks at 40, 60, 80, and 100 mm above the base for known launching heights.

How large is the ramp?

300 x 48 x 105 mm high, with a guide groove down its curved front face.
