Arduino USB-C Hub 8-in-1 Multiport Adapter

MSRP: $31.58
$19.74
Save $11.84
& Free Shipping over $69* Exclusions Apply
SKU: 269446
  • USB-C Hub
  • Arduino Accessories
  • Multiport Adapter
Adding to cart… The item has been added

Details

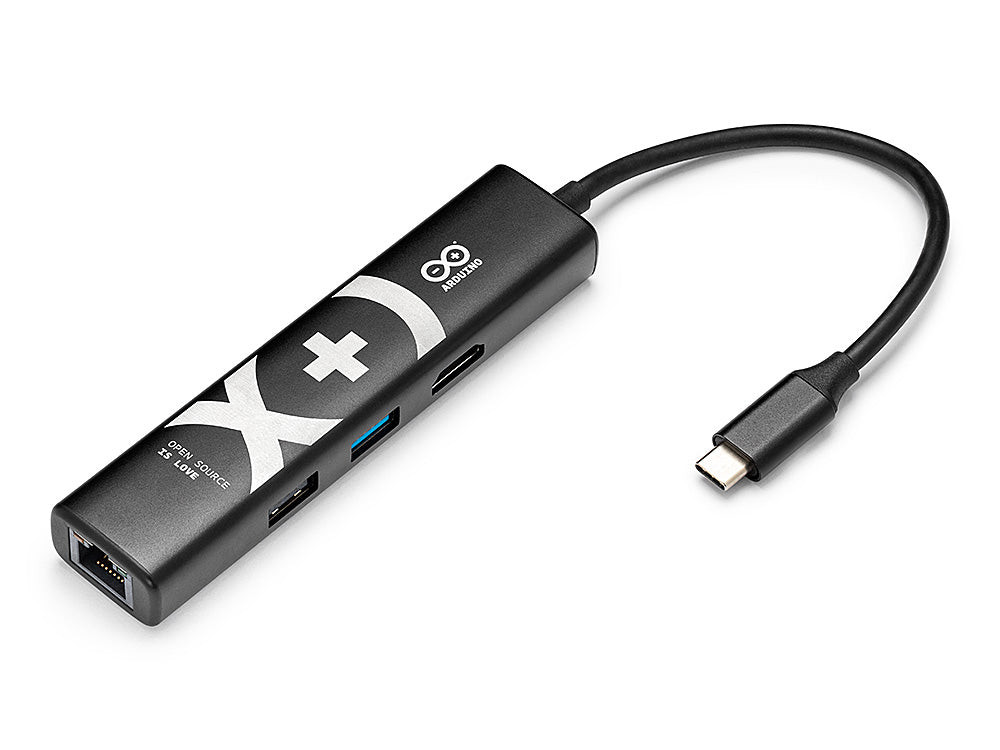

USB-C Hub, 8-in-1 Multiport Adapter

This 8-in-1 USB-C hub adds the ports needed for displays, peripherals, and storage from a single USB-C connection. It is designed for use with the UNO Q and other compatible boards. The eight connections are USB-C power passthrough (65 W), a USB-C data port (480 Mbps), a USB-A 2.0 port (480 Mbps), a USB-A 3.0 port (5 Gbps), HDMI output (4K at 30 Hz), an RJ45 Ethernet port (100 Mbps), a USB 2.0 SD card reader, and a TF card reader.

What’s Included?

  • One 8-in-1 USB-C hub
  • USB-C power passthrough up to 65 W
  • USB-C data port, USB-A 2.0 port, and USB-A 3.0 port
  • HDMI output, RJ45 Ethernet port, SD card reader, and TF card reader

Using It in Class

Students and teachers can connect a monitor, wired network, storage cards, and USB devices to a UNO Q or similar single-board computer without a pile of separate adapters. The power passthrough lets the board stay powered through the same hub. This is a classroom accessory for computer-science, robotics, and electronics labs that already use USB-C boards.

Frequently Asked Questions

How many connections does the hub provide?

It exposes eight usable connections from one USB-C port.

What ports are included?

USB-C power passthrough (65 W), USB-C data (480 Mbps), USB-A 2.0 (480 Mbps), USB-A 3.0 (5 Gbps), HDMI (4K at 30 Hz), RJ45 Ethernet (100 Mbps), an SD card reader, and a TF card reader.

Does it pass power through to the board?

Yes. The USB-C power passthrough is rated up to 65 W.

What is it designed to work with?

It is designed for use with the UNO Q and other compatible boards that need extra physical interfaces.

Is an HDMI display supported?

Yes. HDMI output supports an external monitor or display at 4K at 30 Hz.
